Introduction of Tension reel, Payoff reel

The pay-off reel and tension reel are applied to line production for steel, and other non-ferrous metals( aluminum, and copper alloy mostly), such as hot hot rolling mill, cold rolling mill, continuous pickling line, continuous galvanizing line, annealing line, slitting line, cut to length line,color coating line, etc.

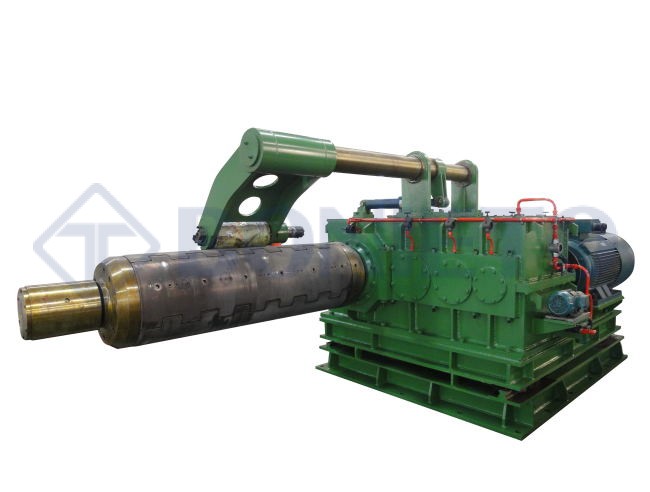

The pay-off reel is located at the entry of the production line and holds the coil on the mandrel. When the mandrel expands and rotates, the pay-off reel tightens the coil and unwinds the strip to the next equipment. During the line operation it feeds the strip continuously while applying back tension.we also call a decoiler or unwinder or uncoiler;

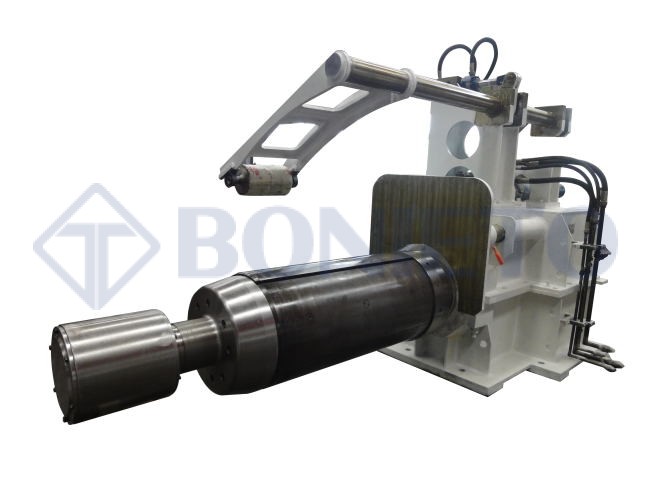

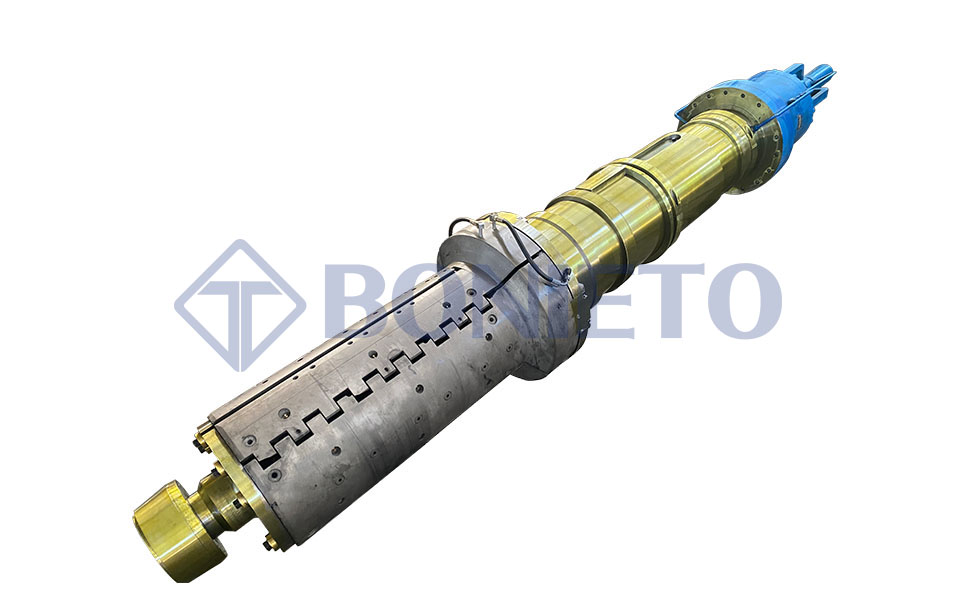

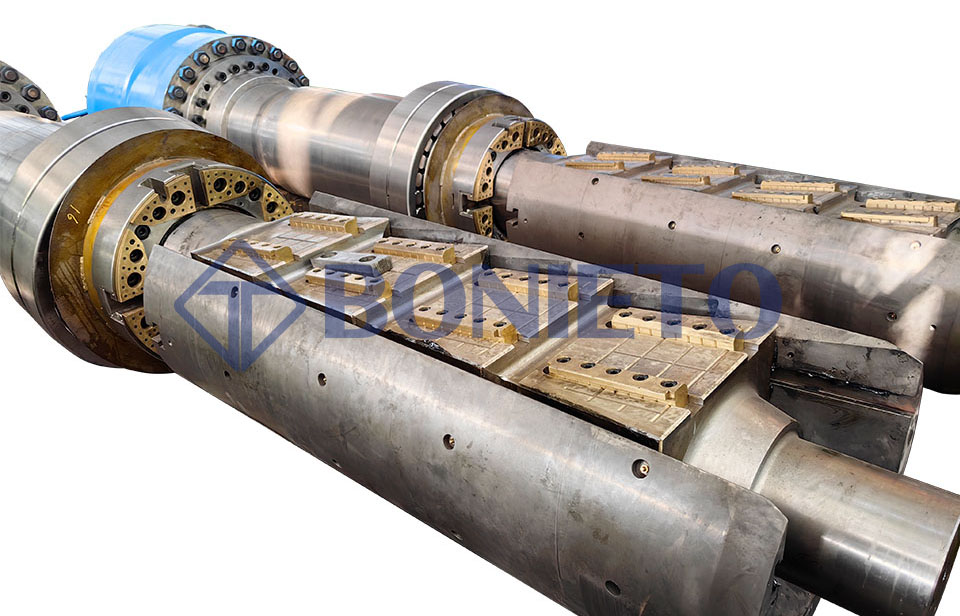

The tension reel is located at the delivery of the production line and winds the strip/plate to form coils. The collapsible mandrel of the tension reel winds the coil tightly while supplying the required tension during line operation. The force needed to do this is much higher than with a pay-off reel. we also call a winder or coiler or recoiler.

We could design and manufacture according to specific needs;could also machining as customer’s drawing; We always strive for the best!
