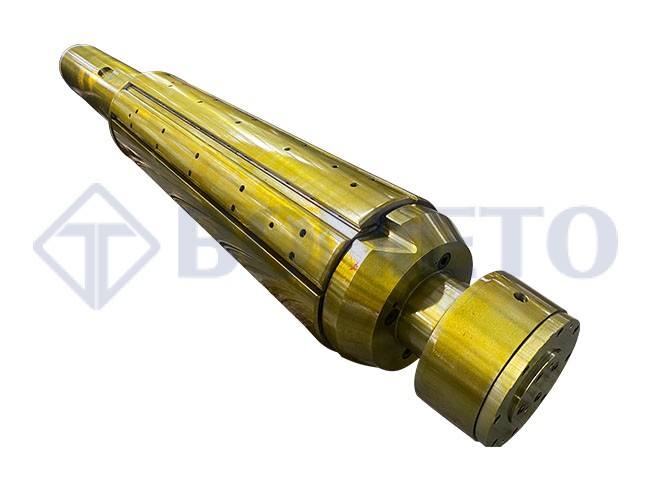

Aluminum continuous casting line coiler mandrel

Product description

Customized aluminum continuous casting line coiler mandrel.This mandrel is economical and practical. The mandrel has high strength,large tension and suitable for high temperature environment, has good working performance, also with gripper. Such structure has been well applied in actual production, and is often used in casting rolling mill, especially for aluminum slab continuous casting rolling mill.

Main components includes: outboard support(OBBS),main shaft, segments, fixed segment, gripper plate, wedges, pull rod, hydraulic cylinder and rotary joint unit. The outboard support work with special removable support on site, to increase the stability at work, reduce run-out of mandrel. The hydraulic cylinder and rotary joint unit will driven pull rod and wedges axial move, segments will have radial movement, this makes mandrel has expanded and collapsed.

GENERAL INTRODUCTION OF MANDREL & SPARE PART

Mandrel shaft is the important component of Tension reel(recoiler) and Payoff reel(uncoiler). Mandrel shaft, Tension reel, Payoff reel, these are our core business.

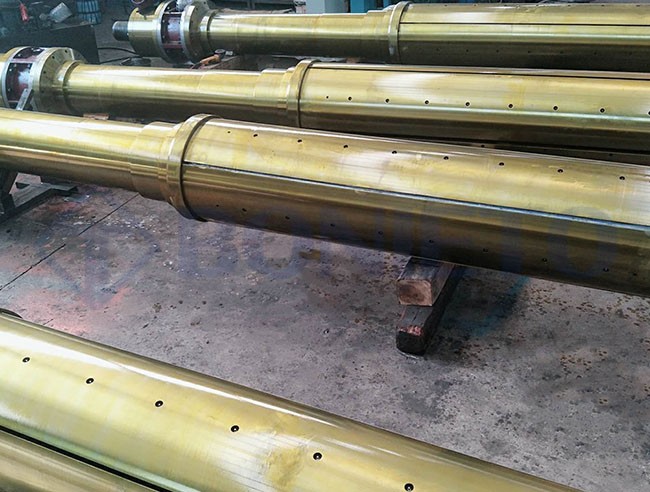

Mandrels has various structures according to different applications. Generally,one assembly mandrel components include: main shaft(arbor), segments, spreader(sleeve),wedges,pull rod, outboard bearing support, hydraulic cylinder and rotary joint unit; we not only manufacture assembly mandrels, but also manufacture mandrel’s spare parts.

All expanding and collapsed mandrels we manufactured will be used for steel and other non-ferrous cold rolling mill and hot rolling mill and coil processing lines, such as pickling line, galvanizing line, color coating line, annealing line, cut to length line, slitting line, rewinding line, tension leveling line,etc.

All mandrels we manufactured are customized made, our technical team could design and manufacture mandrels according to your specific application. Even you don’t have drawings, just tell us related parameters, we will meet and exceed your expectations.
