Expanding and collapsing mandrels for aluminum rewinding machine

Product description

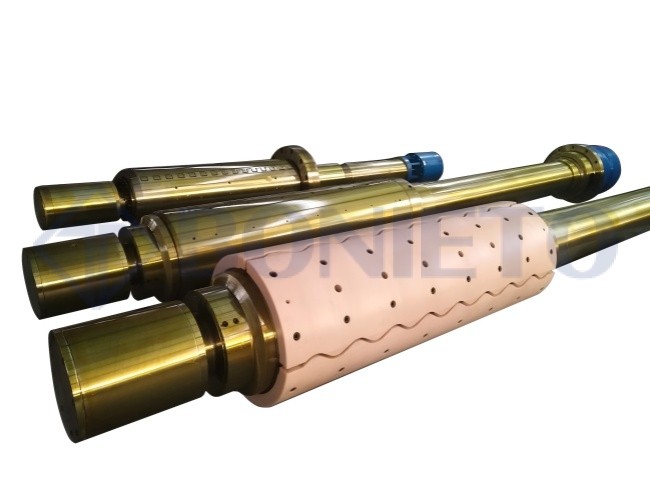

Expanding and collapsing mandrels, driven by hydraulic cylinder. This mandrel structure is quite classical for aluminum rewinding machine. The polyamide filler plates used to meet different specification of aluminum coils. Main components includes: outboard support(OBBS),main shaft, segments, wedges, polyamide filler plates, hydraulic cylinder and rotary joint unit.

The outboard support work with special removable support on site, to increase the stability at work, reduce runout of mandrel. The main shaft and wedges used forged 42CrMo4, quenching and tempering treatment. There are bronze sliding plates on working slope and bottom surface of wedges, which can increase the wear resistance of the workpiece, also make mandrels expanding and collapsed more smoothly and flexibly. And bronze sliding plates will reduce wear to main shaft, segments and wedges, it is easily to change sliding plates. The hydraulic cylinder and rotary joint unit will driven pull rod and wedges axial move, segments will have radial movement, this makes mandrel has expanded and collapsed.

GENERAL INTRODUCTION OF MANDREL & SPARE PART

Mandrel shaft is the important component of Tension reel(recoiler) and Payoff reel(uncoiler). Mandrel shaft, Tension reel, Payoff reel, these are our core business.

Mandrels has various structures according to different applications. Generally,one assembly mandrel components include: main shaft(arbor), segments, spreader(sleeve),wedges,pull rod, outboard bearing support, hydraulic cylinder and rotary joint unit; we not only manufacture assembly mandrels, but also manufacture mandrel’s spare parts.

All expanding and collapsed mandrels we manufactured will be used for steel and other non-ferrous cold rolling mill and hot rolling mill and coil processing lines, such as pickling line, galvanizing line, color coating line, annealing line, cut to length line, slitting line, rewinding line, tension leveling line,etc.

All mandrels we manufactured are customized made, our technical team could design and manufacture mandrels according to your specific application. Even you don’t have drawings, just tell us related parameters, we will meet and exceed your expectations.
