Product description:
The tension reel and pay-off reel are applied to copper, aluminum, steel cold and hot rolling mill, and coil processing lines, such as continuous pickling line, continuous galvanizing line, annealing line, slitting line, cut to length line,color coating line, tension leveling line, rewinding line, trimming line etc.
Parameters:
Coil material – copper,copper alloy
Strip Width – 100~1200mm
Strip Thickness – 0.2~2.0mm;.
Expand and collapse dia – Ø408 & Ø508 (expand situation)

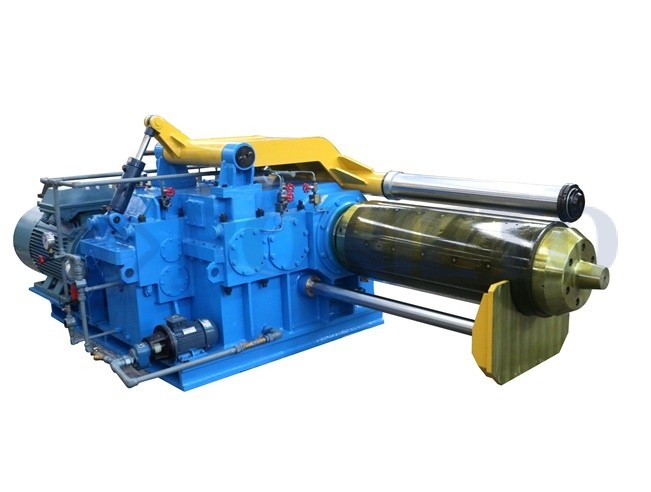

Copper slitting line tension reel. The tension reel and payoff reel are crucial components in copper, aluminum, steel cold and hot rolling mills, as well as coil processing lines, including continuous pickling lines, continuous galvanizing lines, annealing lines, slitting lines, cut-to-length lines, color coating lines, tension leveling lines, rewinding lines, and trimming lines.
Located at the entry of the production line, the payoff reel holds the coil on the mandrel. As the mandrel expands and rotates, the payoff reel tightens the coil and unwinds the strip to the next equipment, feeding the strip continuously while applying back tension. This component is also known as a decoiler, unwinder, or uncoiler.
In contrast, the tension reel is positioned at the delivery end of the production line and is to wind the strip or plate to form coils. The collapsible mandrel of the tension reel tightly winds the coil while supplying the necessary tension during line operation, requiring significantly more force than a payoff reel. This component is alternatively referred to as a winder, coiler, or recoiler.
Both the payoff reel and tension reel consist of a mandrel, gearbox, base frame, motor and coupling, brake, traversing and centering mechanism, as well as hydraulic and lubrication mechanisms.
This customized copper slitting line tension reel used for copper and copper alloy slitting line.
As specialist on mandrels, tension reel, and payoff reel, our products won a good reputation. If you are looking to work with a management team that brings years of perspective to your engineering partner relationship and broad experience to your project, BONIETO has that team. We could give customized solutions to your industry. We seek to build long-lasting partnerships, we will help you to concentrate on your core business. Our products and services will support you.
