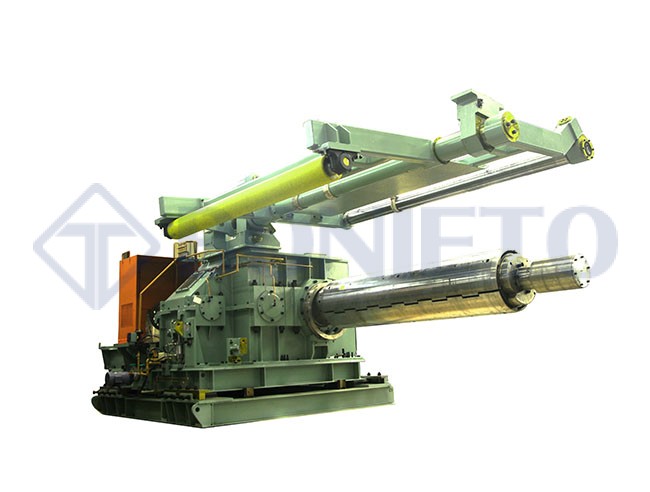

Aluminum coil slitting line recoiler

Product description

Customized aluminum coil slitting line recoiler.

The tension reel and pay-off reel are applied to copper, aluminum, steel cold and hot rolling mill, and coil processing lines, such as continuous pickling line, continuous galvanizing line, annealing line, slitting line, cut to length line,color coating line, tension leveling line, rewinding line, trimming line etc.

The payoff reel is located at the entry of the production line and holds the coil on the mandrel. When the mandrel expands and rotates, the payoff reel tightens the coil and unwinds the strip to the next equipment. During the line operation it feeds the strip continuously while applying back tension. It is also called a decoiler or unwinder or uncoiler;

The tension reel is located at the delivery of the production line and winds the strip/plate to form coils. The collapsible mandrel of the tension reel winds the coil tightly while supplying the required tension during line operation. The force needed to do this is much higher than with a pay-off reel. A tension reel is also called a winder or coiler or recoiler.

Parameters

• aluminum coil slitting line recoiler Application: - slitting line
• Parameters:
• Coil material - aluminum and aluminum alloy
• Strip Width - 2200mm
• Strip Thickness - 0.4~3mm;
• Coil Weight - Max 20T
• Working speed - max 200m/min, min 100m/min

OEM

As specialist on mandrels, tension reel, and payoff reel, our products won a good reputation. If you are looking to work with a management team that brings years of perspective to your engineering partner relationship and broad experience to your project, BONIETO has that team. We could give customized solutions to your industry. We seek to build long-lasting partnerships, we will help you to concentrate on your core business. Our products and services will support you.
